constant speed propeller

Customer Support +39 0532 732470 Email us fppropellersrl@gmail.com

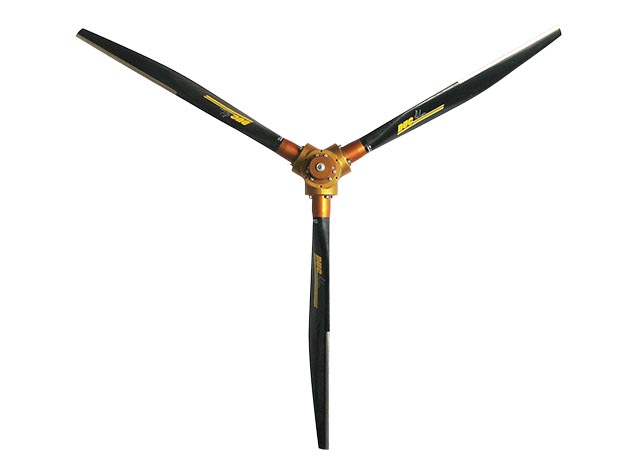

FP hub + Duc Hélices SWIRL blades

[VPH6-TE-SWIRL]


HYDRAULICH HUB

Hydraulic piston is made by using special solutions and materials in order to achieve the absolute hydraulic seal and the operation long-life.

Mechanical anti-reverse stop system.
Hub machined from aluminium alloy rod and blade shank in high strength steel.
Excellent performances over the entire flight envelope of the aircraft (take-off, climb, cruise and top speed). High flight comfort, high quality finishing, low moment of inertia.
Installation of the our propeller is reduced to a very simple operation sequency:
> Installation of brushes and slip ring on the engine gear box
> Tightening of the n. 6 bolts on the propeller/shaft flange
> Mounting of each blade in its numbered seat.


  • Propeller diameter: 1500-1730 mm (adjustable
  • Weight : 8,7 kg
  • Moment of inertia: 4.300 kg*cm2
  • Pitch range: from 10° to 40°, adjustable
  • Pitch change speed: 30 °/sec
  • Pitch control: by constant speed hydraulic governor
  • Applications: Aircraft powered by Rotax 912, 912S, 914
  • Available versions: tractor and pusher
