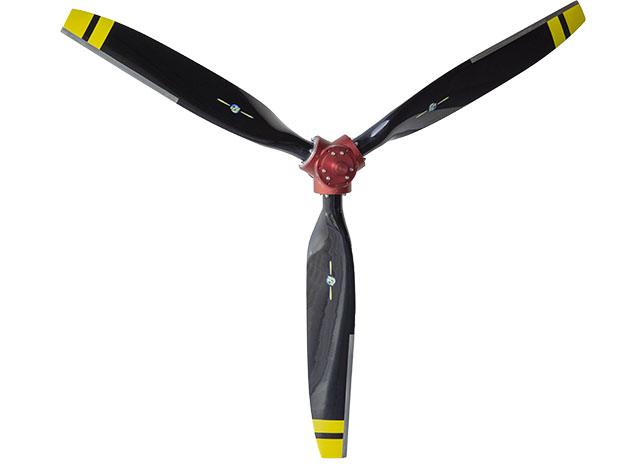

In-flight Variable Pitch Propellers
FP hub + FP blades
Propeller for Aicraft powered by 150/180 Hp Engine
Hydraulic piston is made by using special solutions and materials in order to achieve the absolute hydraulic seal and the operation long-life.
Mechanical anti-reverse stop system.
Hub machined from aluminium alloy rod and blade shank in high strength steel.
Excellent performances over the entire flight envelope of the aircraft (take-off, climb, cruise and top speed). High flight comfort, high quality finishing, low moment of inertia.
Installation of the our propeller is reduced to a very simple operation sequency:
> Installation of brushes and slip ring on the engine gear box
> Tightening of the n. 6 bolts on the propeller/shaft flange
> Mounting of each blade in its numbered seat.
PROPELLER TESTED ACCORDING ASTM F506-10 and F.A.R. 35-C (U.S.A).
Propeller diameter: 1750 mm
Weight : 11 kg
Moment of inertia: 5.600 kg*cm2
Pitch range: from 10° to 40°, adjustable
Pitch change speed: 30 °/sec
Pitch reading: by fp electronic governor
Applications: by constant speed hydraulic governor
Available versions: right rotation (CW)
